Valve, Purge Control: Installation: 3.2L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

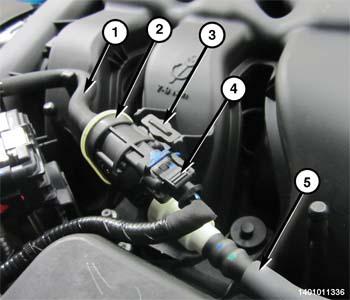

GC0159890Courtesy of CHRYSLER GROUP, LLC
  1. Connect vapor line quick-connect fitting (5) to solenoid.
  2. Connect vapor line (1) to the throttle body.
  3. Connect electrical wiring connector (4) to solenoid.
  4. Carefully push the solenoid assembly (2) straight down onto the tongue-type bracket (3) without bending the vapor lines.
