Valve, Positive Crankcase Ventilation (PCV): Removal: 2.4L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.
  2. Remove the air cleaner hose.

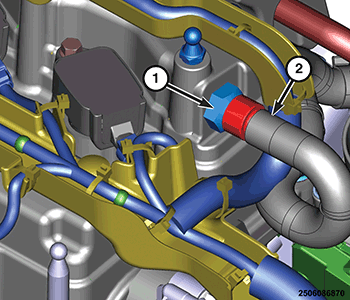

    GC0173288Courtesy of CHRYSLER GROUP, LLC
  3. Remove the hose (2) from the Positive Crankcase Ventilation (PCV) valve (1).
  4. Unscrew the PCV valve (1) from the cylinder head cover.
