Valve, Positive Crankcase Ventilation (PCV): Installation: 3.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect the sealing surfaces of the PCV valve and cylinder head cover. The seal can be reused provided it is free of cuts or tears.
- Install the PCV valve seal in the cylinder head cover.

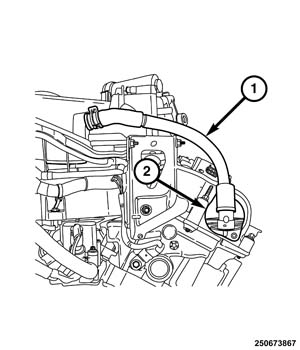

- Install the PCV valve (1) with two screws (2). Tighten the screws to 4 N.m (35 in. lbs.).
- Install the PCV hose (1) between the upper intake manifold and the PCV valve (2).
