Module, Electric Park Brake (EPBM): Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

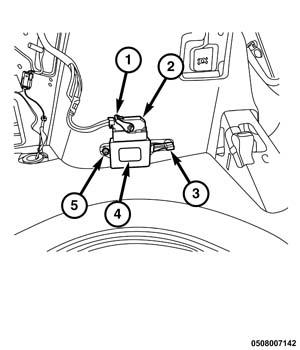

GC0159479Courtesy of CHRYSLER GROUP, LLC

The Electric Park Brake (EPB) module is located in the back left side of the interior near the spare tire and is attached by a slide locking retainer and fastener.
