Pulley, Idler: Removal: Diesel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159208Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .

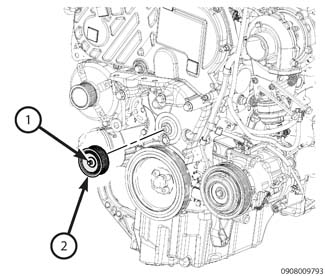

  3. From under the vehicle, remove the bolt (1) and the idler pulley (2).
