Pulley, Idler: Removal: 3.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

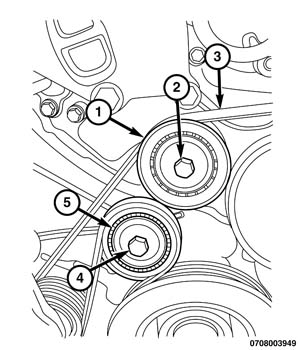

- Remove the serpentine belt (3). Refer to BELT, SERPENTINE, REMOVAL .
- If required, remove the bolt (2) and the upper idler pulley (1).
- If required, remove the bolt (4) and the lower idler pulley (5).
