Sensor, Manifold Air Pressure (Map): Installation: 3.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- The manifold air pressure (MAP) sensor O-ring (1) can be reused if not damaged.
- Apply a small amount of engine oil to the sensor O-ring (1).

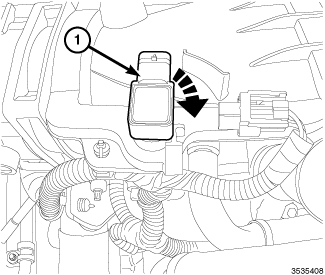

- Install the MAP sensor (1) into the upper intake manifold and rotate 1/4 turn clockwise.
- Connect and lock the electrical connector (1) to the sensor.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
