2.0L Diesel 1/1

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to the appropriate service information article. .
    GC0169963Courtesy of CHRYSLER GROUP, LLC

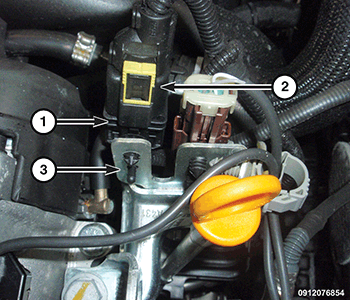

  3. Disconnect the oxygen sensor wire harness connector (2) and remove the wire harness connector pick-tail (1) from support bracket (3).
    GC0147952Courtesy of CHRYSLER GROUP, LLC

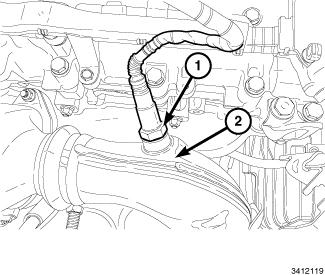

  4. Remove the oxygen sensor (1).
