2.2L Diesel 1/1

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

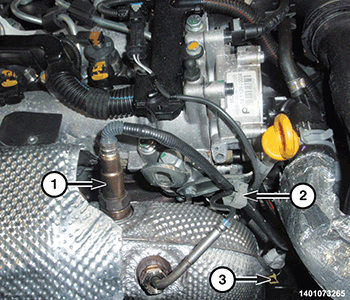

GC0170007Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to the proper torque. Refer to TORQUE SPECIFICATIONS  .
  2. Install the oxygen sensor wire into the retainer (2).
  3. Install the oxygen sensor wire harness connector into the bracket and connect the wire harness connector (3).
  4. Install the engine cover. Refer to the appropriate service information article. .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
