Installation 2.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

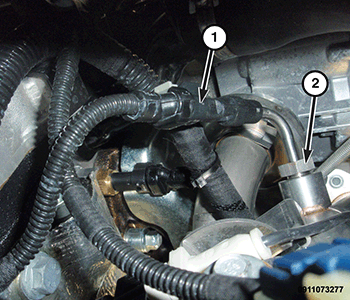

- Install the inlet air temperature sensor (2) into the Charge Air Cooler (CAC) inlet tube. Tighten the sensor to the proper torque. Refer to TORQUE SPECIFICATIONS .
- Connect the inlet air temperature sensor wire harness connector (1).
- Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
