Sensor, Accelerator Pedal Position: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Disconnect the accelerator pedal wire harness connector.

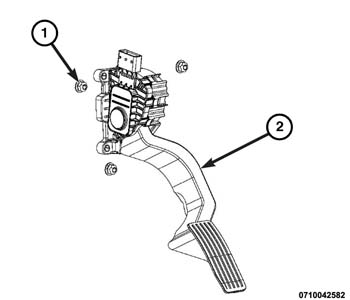

    GC0162298Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nuts (1) and the accelerator pedal assembly (2).
