Injector(S), Fuel: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

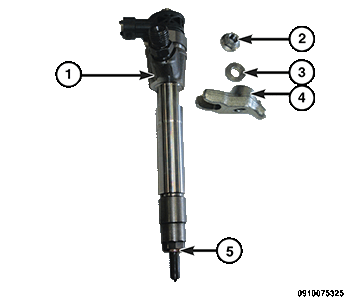

There are four electronically controlled fuel injectors (1) that are located on top of the cylinder head. The fuel injector delivers a fine mist of atomized fuel into the combustion chamber at pressures up to 1600 bar (23.206 psi). Each fuel injector is held in place by a retaining clamp (4), fulcrum (3), and nut (2). The fuel injector uses a copper sealing washer (5) located on the bottom of the fuel injector.
