Tube, Fuel Tank Filler: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Install fuel filler tube into the fuel door housing assembly.
- Install fuel filler tube (4) to the fuel tank. Tighten the hose clamp (3) to the proper torque. Refer to TORQUE SPECIFICATIONS
.

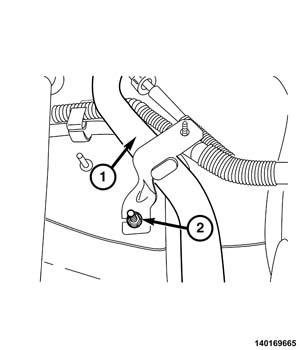

- Install filler tube mounting bracket nut (2). Tighten to the proper torque. Refer to TORQUE SPECIFICATIONS
.
- Attach line to retainer (2) and connect the fuel tube vent line (1) quick connect fitting.
- Install the right rear inner splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
- Install fuel cap.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
