Removal 2.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High pressure fuel spray can cause severe cuts, and is extremely flammable. Before opening any part of the high pressure fuel system, wait for a minimum of 30 seconds after turning off the engine to allow pressure to bleed down from the high pressure side of the fuel system. Otherwise severe personal injury can result when the high pressure fuel system is opened.
WARNING:
No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the engine cover. Refer to the appropriate service information article.
.

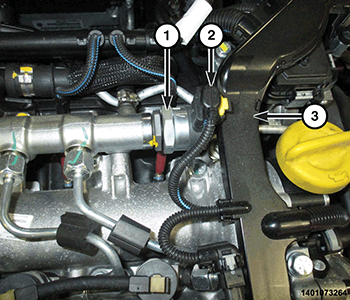

- Disconnect the fuel pressure solenoid wire harness connector (2).
- Using the (special tool #VM.10491, Wrench, Fuel Pressure Regulator) remove the fuel pressure regulator (1).
