Sensor, Oil Temperature: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel system pressure. Refer to STANDARD PROCEDURE .
  2. Remove the upper intake manifold and lower intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .

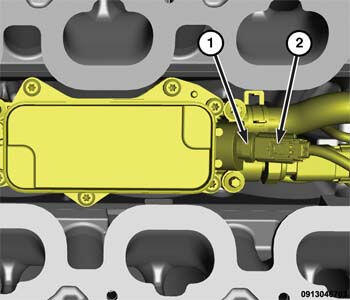

    GC0162119Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the oil temperature sensor wire harness connector (2).
  4. Remove the oil temperature sensor (1) from the oil filter housing.
