Pick-Up, Oil Pump: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to PAN, OIL, REMOVAL .

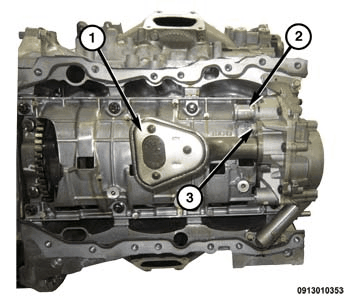

    GC0157474Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolt (3) and the oil pick-up tube (1) from the oil pump.
  3. Remove and discard the O-ring seal from the oil pick-up tube.
