Two Piece: Lower

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159728Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Drain the engine oil. Refer to STANDARD PROCEDURE  .
  3. Remove the front skid plate. Refer to PLATE, SKID, FRONT .
    NOTE:

    The lower oil pan must be removed to access all of the upper oil pan retaining bolts.

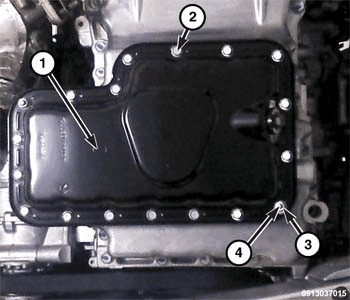

  4. Remove sixteen bolts (2), two nuts (3) and two studs (4) from the flange of the lower oil pan (1).
    CAUTION:

    Do not pry on the lower oil pan flange. There are no designated pry points for lower oil pan removal. Prying on only one or a few locations could bend the flange and damage the pan.

  5. Using care, apply a side force to the lower oil pan in order to shear the sealant bond and remove the pan.
  6. Remove all residual sealant from the upper and lower oil pans. Refer to PAN, OIL, CLEANING .
