Cooler, Oil: Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

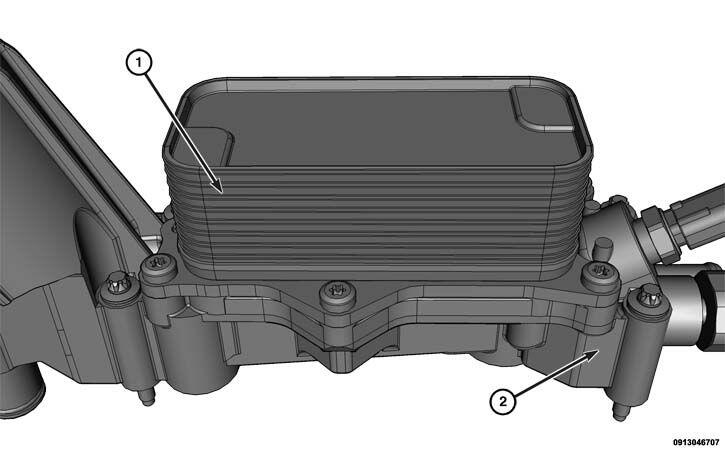

GC0161824Courtesy of CHRYSLER GROUP, LLC

The oil cooler (1) is attached to the top of the oil filter housing (2) which is located in the V of the cylinder block. The oil cooler is a plate style coolant-to-oil heat exchanger.
