Insulator, Engine Mount, Left: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the battery.
  3. Raise the vehicle.
    GC0159327Courtesy of CHRYSLER GROUP, LLC
  4. Remove the belly pan.
  5. Lower the vehicle.

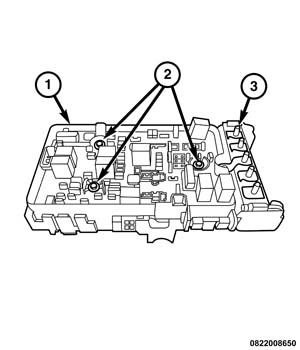

    GC0159652Courtesy of CHRYSLER GROUP, LLC
  6. Remove the PDC (1) assembly. Refer to CENTER, POWER DISTRIBUTION (PDC), REMOVAL .
  7. Carefully position a floor jack under transmission to support the transmission.

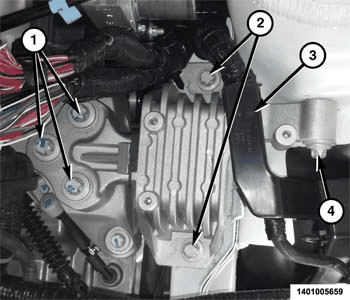

    GC0159450Courtesy of CHRYSLER GROUP, LLC
  8. Using care, remove the wiring harness loom (3) from the mount.
  9. Remove the transmission mount to frame bolts (2).
  10. Loosen the mount to strut tower bolt (4).
  11. Remove the bolts (1) at the transmission mount isolator to bracket.

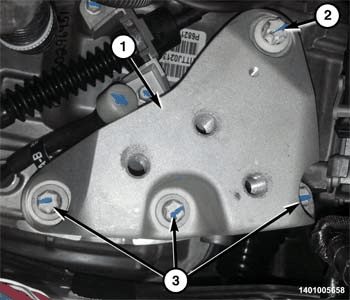

    GC0159904Courtesy of CHRYSLER GROUP, LLC
  12. If required, remove the left side upper transmission mount bracket (1).
