Lifter(S), Hydraulic: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

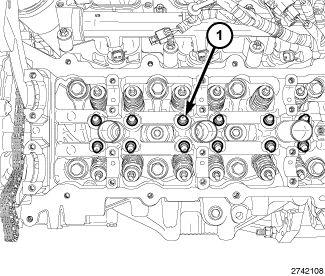

The LH cylinder head hydraulic lifters are shown in illustration, the RH cylinder head hydraulic lifters are similar. If the hydraulic lifters are being reused, reassemble them into their original locations.

Verify that the hydraulic lifters are at least partially full of oil. There should be little or no plunger travel when the hydraulic lifter is depressed.
Install the hydraulic lifter(s) (1).
NOTE:
If the rocker arms are being reused, reassemble them into their original locations.
Install the rocker arm(s). Refer to ROCKER ARM, VALVE, INSTALLATION .
Install the camshaft(s). Refer to CAMSHAFT, ENGINE, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
