Resonator, Air Cleaner: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159742Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover (1).

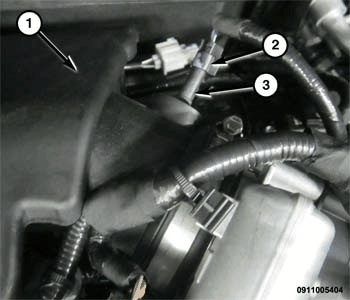

    GC0160169Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the harness connector (2) from the Inlet Air Temperature (IAT) sensor (3).

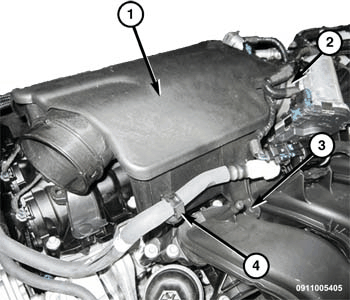

    GC0159897Courtesy of CHRYSLER GROUP, LLC
  4. Separate the clean air hose from the resonator (1).
  5. Remove the vapor line retainer (4) from the resonator.
  6. Remove the push pin (3) that secures the resonator to the intake manifold.
  7. Pull the resonator straight up off of the two locating pins on the right cylinder head cover. Disengage and remove the resonator from the throttle body inlet.
    NOTE:

    The Grommet on the rear attachment of the resonator may stay on engine. Ensure that the grommet is removed and installed onto the resonator.
