Actuator, Axle Shaft: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Clean mating surfaces.
Install new gasket if necessary.

Courtesy of CHRYSLER GROUP, LLC

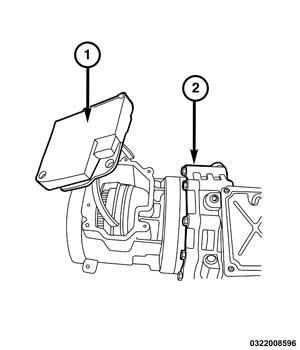

Position actuator (1) onto housing (2), ensure the shift fork engages the sliding collar grooves.
NOTE:
If replacing the actuator, check to make sure the two locating dowel pins are removed from the rear Axle Differential housing, the locating dowels come pre-installed in the actuator.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not reuse the actuator mounting screws.

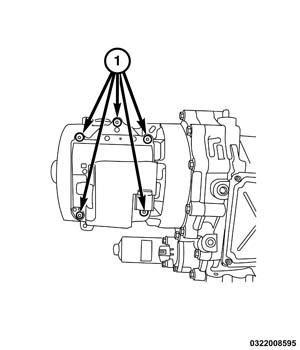

Install new actuator retaining fasteners (1) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
Install the Rear Axle Differential into vehicle. Refer to INSTALLATION .
Check and add fluid as necessary. Refer to FLUID, DIFFERENTIAL, STANDARD PROCEDURE .
