Link, Trailing, Rear: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the trailing link (3) to the steering knuckle then install the three trailing link to knuckle mounting bolts (4) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .

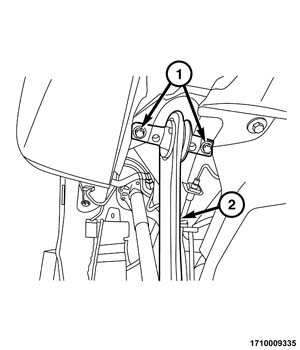

- Position the forward end of the trailing link (2) to the body and install the two trailing link to body mounting bolts (1). Do not tighten at this time.
- Using a suitable holding fixture, support the outboard end of the spring link and lift it to normal ride height.
- Tighten the two trailing link to body mounting bolts (1) to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Remove the lower control arm holding fixture.
- Install the routing clips attached to the trailing link.
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
