Link, Toe: Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

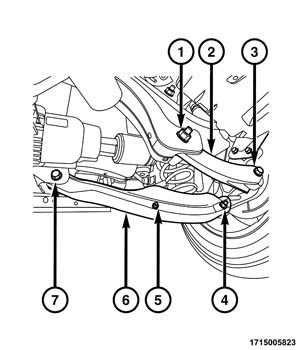

GC0159361Courtesy of CHRYSLER GROUP, LLC

The toe link (2) is connected between the cradle and the middle of the knuckle with a bonded bushing on the cradle side end. The bushing is serviced with a new link only. On the cradle side of the link a cam bolt (1) is used for alignment purposes. On the knuckle side of the link, the bushing is on the knuckle and is between the two parts of the toe link. Make sure that the proper bolts and nuts are used when servicing.
