Link, Stabilizer Bar: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

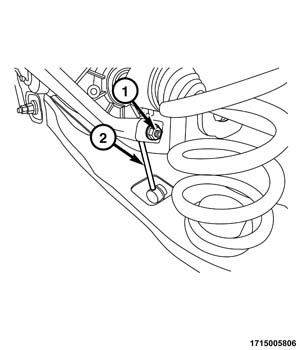

- Install the stabilizer link (2) upper stud in the end of the stabilizer bar from the outboard side. Install the stabilizer link nut to stabilizer bar (1) on the upper stud and while holding the stabilizer link stud stationary, tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Attach the stabilizer bar link to the spring link (6). Install the stabilizer link nut to spring link (5) and while holding the stabilizer bar link lower stud stationary, tighten the to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Remove the support and lower the vehicle.
