Sensor, Wheel Speed, Rear: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Install the Wheel Speed Sensor (WSS) (5) into the knuckle.
- Install the rear wheel speed sensor bolt (6) and tighten to the proper. Refer to TORQUE
.NOTE:
On vehicles with off road suspension only, ensure that the tie strap gets placed in the same location that it was removed from, for proper wheel speed sensor wiring harness routing.
- Route wheel speed sensor cable and snap into clips and retainers.

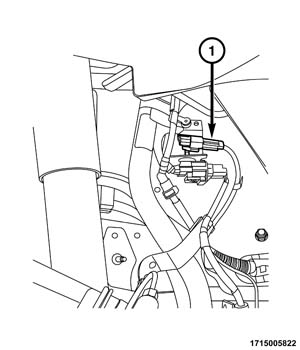

- Connect wheel speed sensor cable connector (1) to body wiring harness connector.
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
