Sensor, Wheel Speed, Front: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

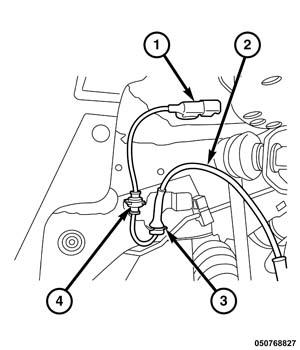

GC0155755Courtesy of CHRYSLER GROUP, LLC
NOTE:

Before proceeding. Refer to CAUTION . Refer to WARNING .

  1. Raise and support the vehicle

    Refer to HOISTING, STANDARD PROCEDURE .

  2. Disconnect the wheel speed sensor harness (2) connector from the wiring harness connector (1) on the inner fender.
  3. Separate sensor harness clips from retainers (3, 4).
  4. Separate the wheel speed sensor harness from the strut bracket.

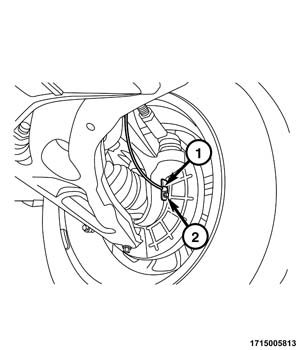

    GC0159258Courtesy of CHRYSLER GROUP, LLC
  5. Remove the mounting screw (2) fastening the wheel speed sensor head (1) to the knuckle. Pull the sensor head out of the knuckle and remove the wheel speed cable from the vehicle.
