Tube, Condensation Drain: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

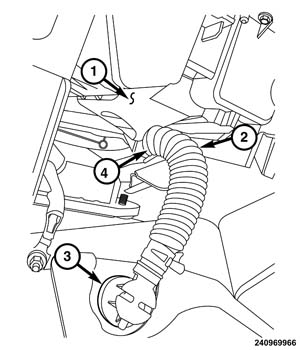

GC0155569Courtesy of CHRYSLER GROUP, LLC
  1. Install the condensation drain tube (2) into the floor panel (3).
  2. Connect the condensation drain tube with clamp (4) to the HVAC housing (1).
  3. Install the passenger side center console closeout.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
