Removal - 3.2L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.
  2. Recover the refrigerant from the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  3. Remove the Powertrain Control Module (PCM). Refer to MODULE, POWERTRAIN CONTROL (PCM), REMOVAL .
    GC0160161Courtesy of CHRYSLER GROUP, LLC

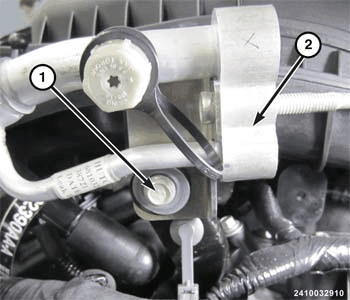

  4. Remove the nut that secures the suction/discharge line to the Internal Heat Exchanger (IHX) (2).
  5. Remove and discard the washer seal.
  6. Install plugs in, or tape over the opened refrigerant line fittings and ports.
  7. Remove the bolt (1) that secures the IHX bracket to the engine.
    GC0159360Courtesy of CHRYSLER GROUP, LLC
  8. Remove the nuts (3) and disconnect the discharge line (1) and liquid line (2) from the IHX.
  9. Remove and discard the washer seal.
  10. Install plugs in, or tape over the opened refrigerant line fittings and ports.
    GC0159226Courtesy of CHRYSLER GROUP, LLC

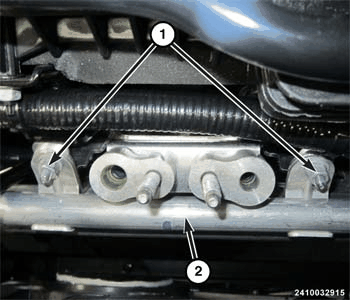

  11. Remove the nuts (1) securing the coolant tube (2) and reposition the tube to gain clearance.
    GC0159510Courtesy of CHRYSLER GROUP, LLC

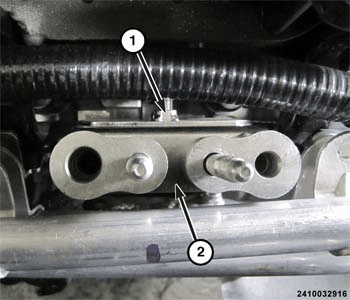

  12. Remove the bolt (1) securing the IHX manifold (2) to the bracket.
  13. Remove the Catalytic Converter. Refer to CONVERTER, CATALYTIC, REMOVAL .
    GC0159702Courtesy of CHRYSLER GROUP, LLC

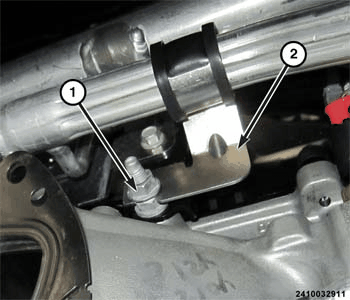

  14. Remove the nut (1) securing the IHX bracket (2).
    GC0159546Courtesy of CHRYSLER GROUP, LLC
  15. Remove the bolt (1) securing the IHX manifold (2) to the A/C compressor (3) and detach the manifold from the compressor.
  16. Remove and discard the washer seals and install plugs in, or tape over the opened line fittings and ports.
  17. Remove the IHX from the engine compartment.
