Core, Heater: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

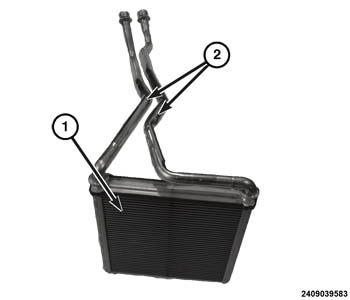

The heater core is mounted in the Heating, Ventilation and Air Conditioning (HVAC) housing, which is located behind the instrument panel. The heater core is a heat exchanger made of rows of aluminum tubes and fins (1). The heater core is positioned within the HVAC housing so that only the selected amount of air entering the housing passes through the heater core, before being distributed through the heating and A/C system ducts and outlets. One end of the heater core is fitted with a tank that includes the fittings for the heater core tubes (2).
The HVAC housing must be removed from the vehicle for service of the heater core.
