Housing-Air Inlet
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.
WARNING:
Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.
- Remove the HVAC housing and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL .
- Disconnect the wire harness connector from the recirculation door actuator (2).
- Remove the three screws (1) that secure the air inlet housing to HVAC housing.

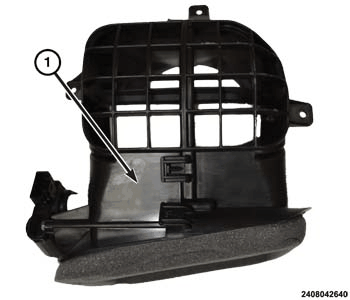

- Remove the air inlet housing (1) from the HVAC housing.
