Duct, Defroster: Description

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

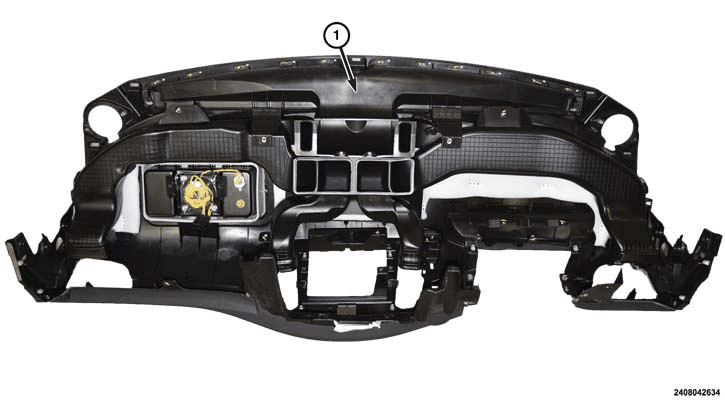

GC0162304Courtesy of CHRYSLER GROUP, LLC

The defroster outlets receive airflow from the HVAC housing through a molded plastic defroster duct (1) that is attached to the underside of the instrument panel cover.

The defroster duct is integral to the instrument panel cover and is not serviced separately.
