Right Floor

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the right side silencer panel to gain access to the air outlet temperature sensor, located on the right side floor duct.

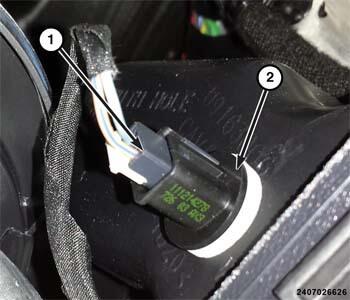

    GC0158351Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness (1) from the air outlet temperature sensor (2).
  4. Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent, disengage the air duct temperature sensor from the right side floor duct and remove the sensor.
