Instrument Panel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the radio in order to gain access to the instrument panel air outlet temperature sensors. Refer to RADIO, REMOVAL .

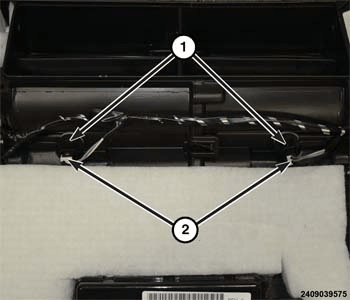

    GC0162239Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness (1) from the air outlet temperature sensor (2).

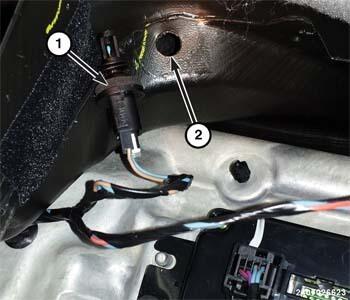

    GC0158332Courtesy of CHRYSLER GROUP, LLC
  4. Using a Trim Stick (special tool #C-4755, Trim Stick) or equivalent, disengage the air outlet temperature sensor (1) from the instrument panel duct (2) and remove the sensor.
