Sensor, Sun: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

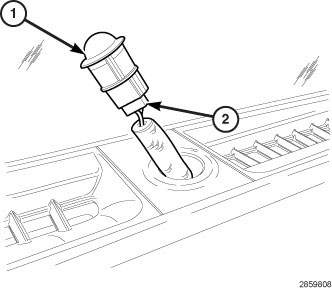

GC0145350Courtesy of CHRYSLER GROUP, LLC
  1. Position the sun sensor (1) to the top of the instrument panel and connect the wire harness connector (2) to the sensor.

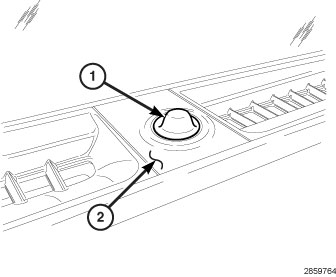

    GC0145349Courtesy of CHRYSLER GROUP, LLC
  2. Align the tab on the sun sensor (1) with the slot in the opening in the defroster grille (2) and install the sensor onto the grille. Make sure that the sensor is fully engaged to the defroster grille.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
