Sensor, Ambient Temperature: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

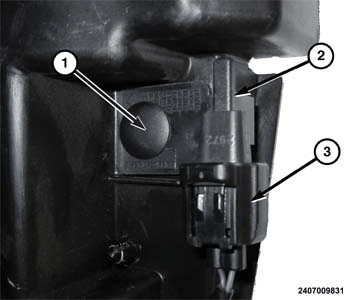

GC0159721Courtesy of CHRYSLER GROUP, LLC
  1. Install the push pin (1) that secures the ambient air temperature sensor to the vehicle.
  2. Connect the wire harness connector (3) to the ambient air temperature sensor (2).
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
