Module, Power, Blower Motor: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

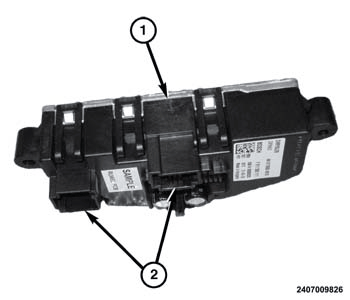

The blower motor power module consists of a molded plastic housing with integral wire connector receptacles (2) and mounting provisions. Concealed behind the housing is the power module electronic circuitry and a finned aluminum heat sink (1). The blower motor power module is located on the passenger side of the Heating, Ventilation, and Air Conditioning (HVAC) housing and is serviceable without removal of the HVAC housing.
