Actuator, Mode Door: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Illustration shown with instrument panel cut away for clarity.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the power inverter module. Refer to MODULE, POWER INVERTER, REMOVAL .

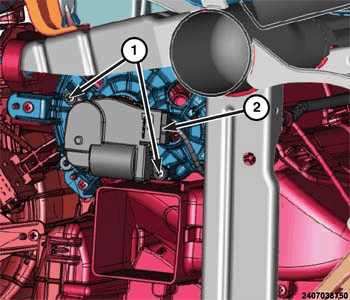

    GC0159551Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (2) from the mode door actuator.
  4. Remove the two screws (1) that secure the mode door actuator to the air distribution housing.
  5. Remove the mode door actuator from the air distribution housing.
