Home >> Jeep >> 2017 >> Wrangler Sahara, Automatic Trans >> Repair and Diagnosis >> External Pages >> Different car >> Section 39 (Heating & Air Conditioning (Service Information)) >> Controls >> Actuator, Blend Door >> Removal >> Right Side

Right Side

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the right side instrument panel silencer. Refer to PANEL, SILENCER, LOWER, REMOVAL .
  3. Remove the right side center console closeout.
    GC0159747Courtesy of CHRYSLER GROUP, LLC

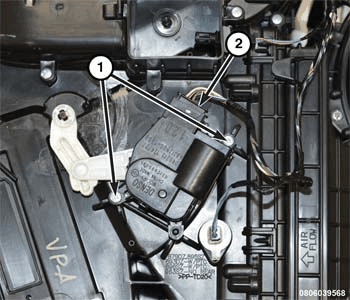

  4. Remove the two screws (1) that secure the blend door actuator to the right side of the HVAC housing.
  5. Disconnect the wire harness connector (2) form the blend door actuator.
  6. Remove the blend door actuator from the HVAC housing.
