Left Side

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the left side instrument panel silencer. Refer to PANEL, SILENCER, LOWER, REMOVAL .
  3. Remove the left side center console closeout.

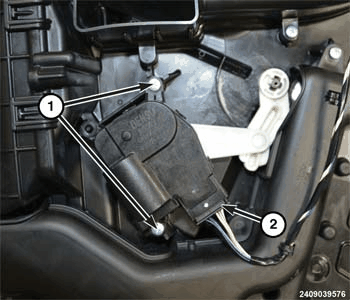

    GC0159252Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness connector (2) from the blend door actuator.
  5. Remove the two screws (1) that secure the blend door actuator to the left side of the HVAC housing.
  6. Remove the blend door actuator from the HVAC housing.
