Stabilizer Bar, Front: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Inspect the brackets, insulators and links for wear or damage. Install new components as necessary.

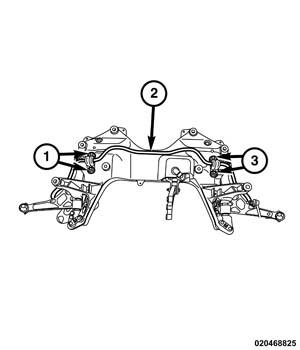

- Install the stabilizer bar (2) to the crossmember.
- Install the four stabilizer bar mounting bolts (1, 3). Tighten the to Stabilizer Bar Mounting Bolts to Specification.
- Install the crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, INSTALLATION .
