Link, Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

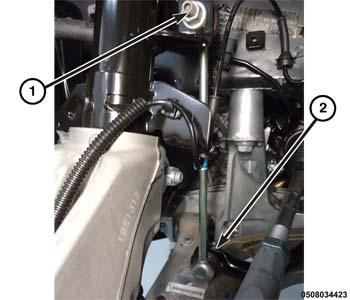

GC0159933Courtesy of CHRYSLER GROUP, LLC
  1. Position the stabilizer bar link to the strut and install the stabilizer bar link nut (1).
  2. Position the stabilizer bar link to the stabilizer bar and install the stabilizer bar link nut (2).
  3. Using the appropriate tool, hold the stabilizer bar link studs stationary and tighten the Stabilizer Bar Link Nuts to Specification.
  4. Install the tire and wheel assembly and the lug bolts. Refer to INSTALLATION .
  5. Lower the vehicle.
