Crankshaft Sprocket

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL .

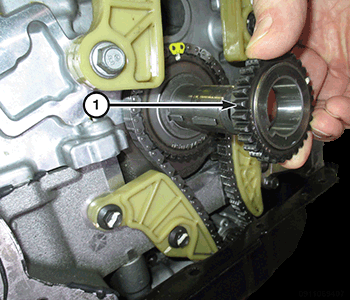

    GC0171510Courtesy of CHRYSLER GROUP, LLC
  2. Remove the crankshaft sprocket (1).
