Manifold, Exhaust: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Disconnect the upstream and downstream oxygen sensor harness connectors.
  4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  5. Remove the belly pan. Refer to BELLY PAN, REMOVAL .

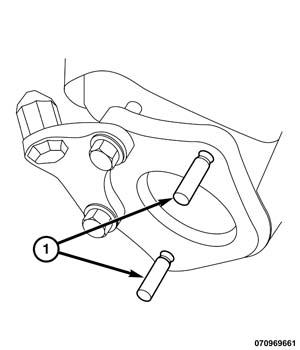

    GC0155656Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two nuts from the converter outlet flange. Discard the gasket

    .

    GC0156381Courtesy of CHRYSLER GROUP, LLC
  7. Lower the vehicle.
  8. Remove the four upper shield bolts (2).
  9. Remove the upper shield (2).
    GC0155619Courtesy of CHRYSLER GROUP, LLC
  10. Remove the exhaust manifold bolts (1).
  11. Remove the manifold out the top of the vehicle.
  12. Remove and discard manifold gasket.
