Cover(S), Cylinder Head: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover assembly.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the make up air hose from the cylinder head cover fitting.
  4. Remove the positive crankcase ventilation (PCV) hose.
  5. Disconnect and remove the ignition coils. Refer to COIL, IGNITION, REMOVAL .
    GC0158540Courtesy of CHRYSLER GROUP, LLC
  6. Clean the cylinder head cover prior to removal.
  7. Remove the push pins that secure the coil harness to the cylinder head cover.
    NOTE:

    If any of the push pins are broken and remain in the cover, use a pick to rotate the broken portion out of the hole.

  8. Remove the twelve cylinder head cover mounting bolts and six stud bolts (1).
  9. Remove the cylinder head cover.
    NOTE:

    Hold the coil harness up and separate to remove between the left and right harness runs.

  10. Remove and discard the outer cylinder head cover gaskets and the tube gaskets from the covers.

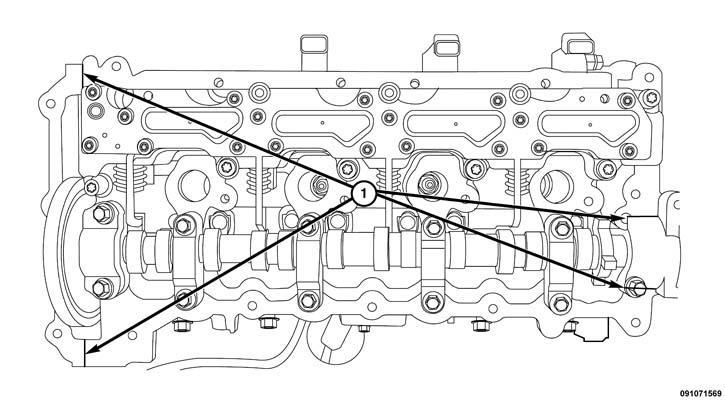

    GC0156340Courtesy of CHRYSLER GROUP, LLC
  11. Clean all grease, oil and sealant from the cylinder head cover mating surfaces.
