Resonator, Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
G00667360Courtesy of CHRYSLER GROUP, LLC

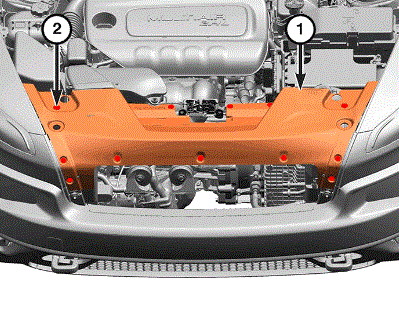

  1. Remove the twelve push pin fasteners (2) and remove the closeout panel (1).
    NOTE: The air duct resonator assembly (1) is slotted to slide onto the push pin grommets (3). It is not necessary to remove push pin grommets.
    G00667364Courtesy of CHRYSLER GROUP, LLC

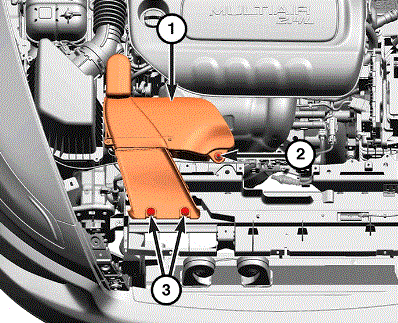

  2. Remove the bolt (2), release air duct resonator assembly from the two push pin grommets (3) and remove the resonator (1).
