2.2L Diesel EGT Sensor 1/2

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

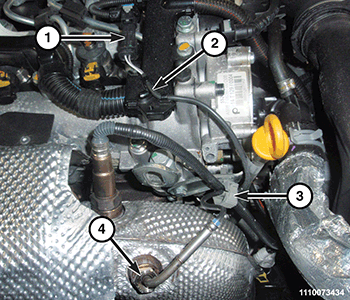

GC0169923Courtesy of CHRYSLER GROUP, LLC
  1. Install the Exhaust Gas Temperature (EGT) sensor 1/2 (4) into the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF) (5) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
  2. Install the EGT wire into the retainer (3).
  3. Attach the EGT sensor 1/2 wire harness to the retainer (2).
  4. Connect the EGT sensor wire harness connector (1).
  5. Install the engine cover. Refer to the appropriate article. .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
