2.2L Diesel EGT Sensor 1/1

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

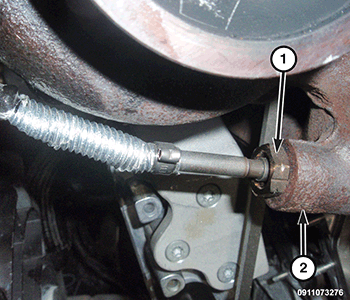

GC0170040Courtesy of CHRYSLER GROUP, LLC
  1. Install the Exhaust Gas Temperature (EGT) sensor 1/1 (1) into the exhaust manifold (2) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .

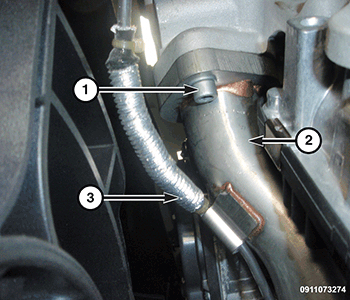

    GC0170012Courtesy of CHRYSLER GROUP, LLC
  2. Attach the EGT sensor 1/1 wire harness (3) to the Charge Air Cooler (CAC) inlet tube (2).

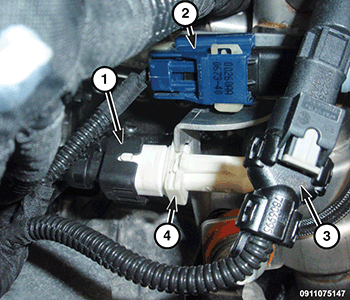

    GC0169912Courtesy of CHRYSLER GROUP, LLC
  3. Connect the EGT sensor wire harness connector (2).
  4. Remove the support and lower the vehicle.
  5. Install the engine cover. Refer to the appropriate article. .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
