Resonator, Exhaust: Installation: Diesel
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

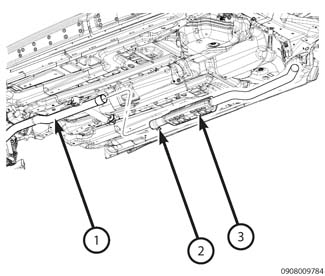

- Install the resonator (3) onto the crossunder pipe (1) and tighten the clamp (2) to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Install the muffler. Refer to MUFFLER, EXHAUST, INSTALLATION .
- Remove the support and lower the vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
- Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
