Resonator, Exhaust: Installation: 2.4L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

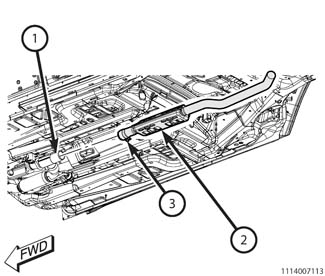

- Install the exhaust resonator (2) to the cross under pipe (1) and tighten the clamp nut (3) to 55 N.m (41 ft. lbs.).
- Insert the exhaust muffler. Refer to MUFFLER, EXHAUST, INSTALLATION .
- Check for proper clearance between the exhaust and the surrounding components.
- Start the engine and inspect for exhaust leaks.
